PH60Z-HT Smart pH Tester Kit for High Temperature and/or Corrosive Water Solutions with LabSen 865 ATC pH Electrode
- Description
- Specs
- Documents
- Parts
- Warranty
Discover the next level of precision, reliability, and portability with our top-rated professional PH60 tester, now paired with the Swiss LabSen 865 pH/temp. electrode. This powerful combination revolutionizes pH measurement in high-temp and/or corrosive water solutions such as electroplating solutions. The electrode also works well in general water solutions. Elevate your pH measurement experience with our comprehensive test kit that leaves no detail unaddressed. This all-inclusive kit not only includes ready-to-use calibration buffer solutions (4.00/7.00/10.01) and soaking solution but also features the Apera CalPod Solution Organizer for optimizing your calibration process. All components are conveniently housed in a rugged carrying case, ensuring that you can effortlessly perform reliable pH measurements and calibrations wherever you go.
- RELIABLE + SMART + PORTABLE –– The top-rated smart pH tester is now paired with the Swiss LabSen 865 pH electrode, allowing you to effortlessly take lab-grade pH measurement in high-temp and/or corrosive water solutions such as electroplating solutions and manage data wherever you go.
- SWISS SENSOR TECH –– Crafted with Swiss sensor technology and premium materials, the LabSen 865 pH electrode is engineered to withstand high temperature and complex/corrosive liquids with its specialized PHY membrane and PTFE anti-clogging junction, ensuring consistent and precise results.
- SMART DATA MANAGEMENT –– Connect the meter to ZenTest Mobile App via Bluetooth to use the cloud-based data management functions; easily record, organize, and share all the measurement data with time stamps, geo-location, notes, and photos.
- USER-FRIENDLY WORKFLOW –– The ZenTest Mobile App will automatically guide you through step by step to perform professional calibration, and allow you to fully customize all the parameter settings to meet your specific testing needs.

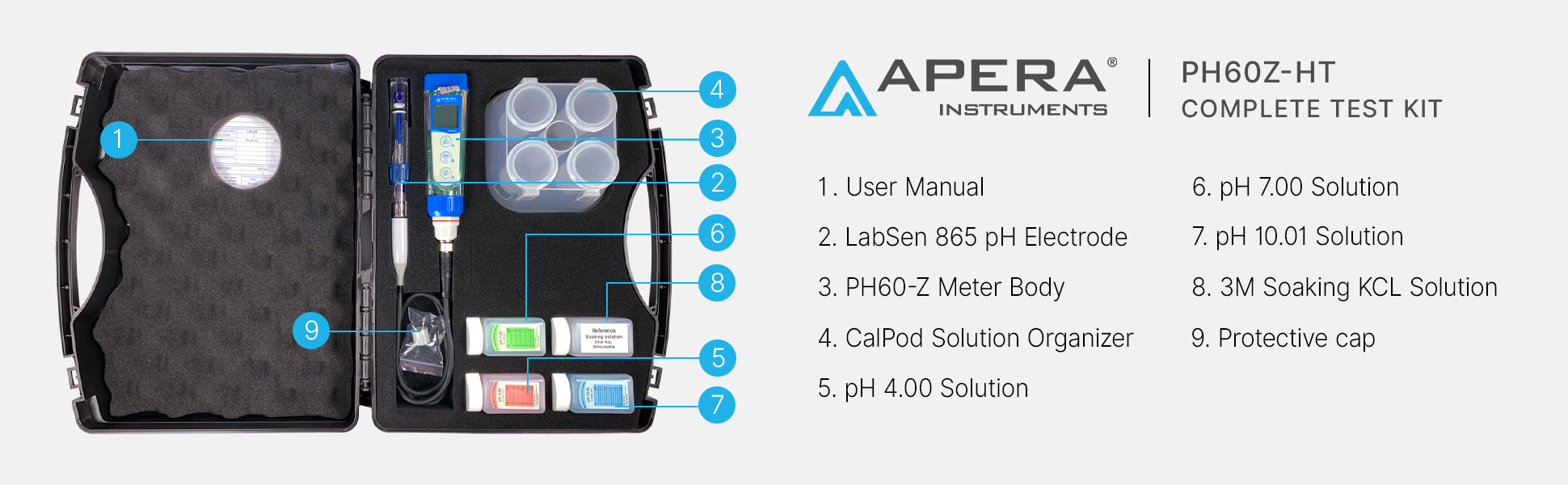

- COMPLETE TEST KIT –– not only includes ready-to-use calibration buffer and soaking solutions, but also features the Apera CalPod Solution Organizer for optimizing your calibration process.
Instrument Technical Specs
pH
Range
-2.00 – 16.00 pH
Resolution
0.01 pH
Accuracy
±0.01 pH ±1 digit
Temperature Compensation
0 to 100°C (Auto or Manual)
mV
Range
-1000 mV - 0 - 1000 mV
Resolution
1 mV
Accuracy
±0.2% F.S
Temp.
Range
0 to 100°C (23 to 212°F)
Resolution
0.1°C
Accuracy
±0.5°C ±1 digit
Calibration
Auto. 1–3 points
Buffer Recognition USA: pH 1.68, 4.00, 7.00,10.01, 12.45; NIST: pH 1.68, 4.01, 6.86, 9.18, 12.45 Reading Alarm Yes Smart Controlling ZenTest Mobile App on iOS/iPadOS/MacOS/Android via Bluetooth (10 meters) Data Logger Manual or Auto. data logger with unlimited data storage Data Content measurement values, date, time, GEO location, photo, linked asset, operator name, notes Data Output email, airdrop, or other SMS app Calibration Reminder Set up on ZenTest App Reading Auto. Hold Yes Temperature Unit ˚C or ˚F Screen Backlight 3-color backlight with auto. power off: White – measurement mode
Green – calibration mode
Red – reading alarmSelf-diagnosis
Yes
Power
AAA Batteries * 4
IP Rating
IP67
Dimensions& Weight
Tester: 40×40×178mm/133g; Case: 255×210×50mm/700g;
pH Electrode Technical Specs(LabSen 865)
Housing Material
Lead-free glass
Temperature sensor
30KΩ NTC
Junction
PTFE
Reference Electrode
Silver Ion Trap Reference System
Electrolyte
3M KCL
Range
1 to 13 pH
Temperature Range
0 to 140°C
Connector
8-pin
We warrant this instrument to be free from defects in material and workmanship and agree to repair or replace free of charge, at the option of APERA INSTRUMENTS, LLC, any malfunctioned or damaged product attributable to the responsibility of APERA INSTRUMENTS, LLC for a period of TWO YEARS for the instrument and SIX MONTHS for the probe from the delivery.
This limited warranty does NOT cover any issues due to:
- Accidental damage
- Improper use
- Normal wear and tear
- Transportation
- Storage
- Failure to follow the product instructions
- Unauthorized maintenance, modifications, combination or use with any products, materials, processes, systems or other matter
- Unauthorized repair
- External causes such as accidents, abuse, or other actions or events beyond our reasonable control.
