PH60Z-MT Smart pH Tester Kit for Fresh or Frozen Meats with LabSen 765 Blade Spear ATC pH Electrode
- Description
- Specs
- Documents
- Parts
- Warranty

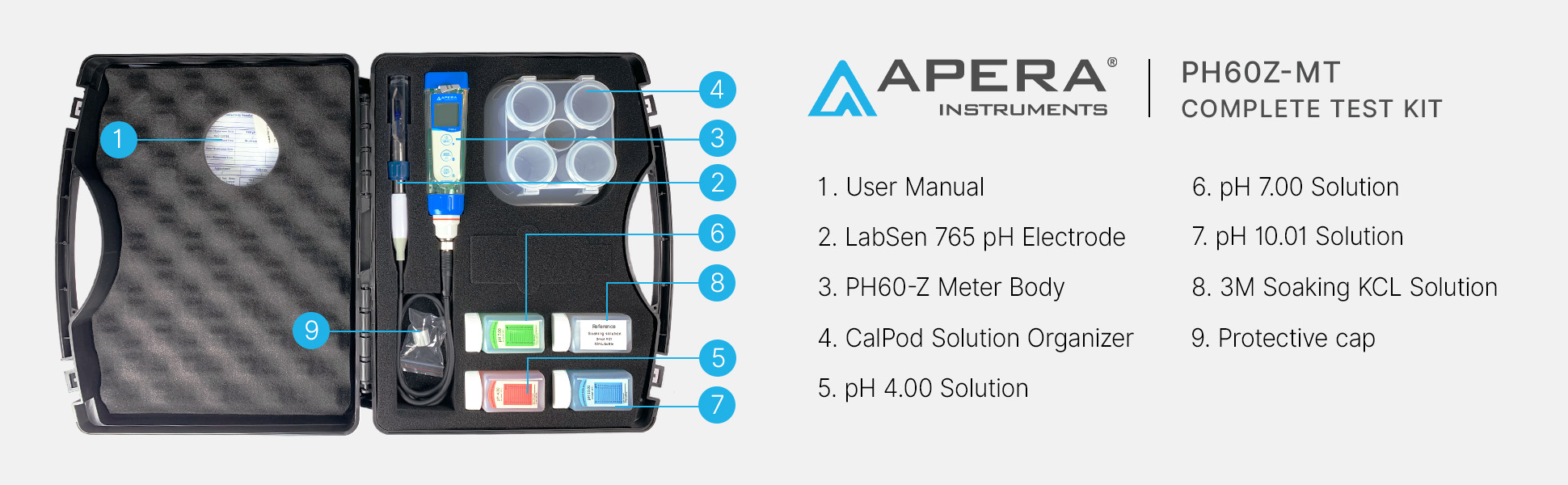

Discover the next level of reliability, portability, and smart data management with our top-rated Smart PH60-Z tester, now paired with the Swiss LabSen 765 pH/temp. electrode. This powerful combination revolutionizes pH measurement in solid food samples like meats, frozen meats, fish, fruits, cheese, dough, etc. The electrode also works well in general water solutions. Elevate your pH measurement experience with our comprehensive test kit that leaves no detail unaddressed. This all-inclusive kit not only includes ready-to-use calibration buffer solutions (4.00/7.00/10.01) and soaking solution but also features the Apera CalPod Solution Organizer for optimizing your calibration process. All components are conveniently housed in a rugged carrying case, ensuring that you can effortlessly perform reliable pH measurements and calibrations wherever you go.- RELIABLE + SMART + PORTABLE –– The top-rated smart pH tester is now paired with the Swiss LabSen 765 blade spear pH electrode, allowing you to directly take lab-grade pH measurement in meats and other solid foods and manage data wherever you go.
- SWISS SENSOR TECH –– The combination of open junction and polymer electrolyte eliminate the common issue of junction clogging and electrolyte immiscibility in high-protein and high-fat samples, ensuring quick and precise results.
- TITANIUM ELECTRODE BODY –– The Food-grade Titanium electrode body is highly resistant to corrosion and impact, ideal for food processing environment.
- SMART DATA MANAGEMENT –– Connect the meter to ZenTest Mobile App via Bluetooth to use the cloud-based data management functions; easily record, organize, and share all the measurement data with time stamps, geo-location, notes, and photos.
- USER-FRIENDLY WORKFLOW –– The ZenTest Mobile App will automatically guide you through step by step to perform professional calibration, and allow you to fully customize all the parameter settings to meet your specific testing needs.
Instrument Technical Specs
pH
Range
-2.00 – 16.00 pH
Resolution
0.01 pH
Accuracy
±0.01 pH ±1 digit
Temperature Compensation
0 to 100°C (Auto or Manual)
mV
Range
-1000 mV - 0 - 1000 mV
Resolution
1 mV
Accuracy
±0.2% F.S
Temp.
Range
0 to 100°C (23 to 212°F)
Resolution
0.1°C
Accuracy
±0.5°C ±1 digit
Calibration
Auto. 1–3 points
Buffer Recognition USA: pH 1.68, 4.00, 7.00,10.01, 12.45; NIST: pH 1.68, 4.01, 6.86, 9.18, 12.45 Reading Alarm Yes Smart Controlling ZenTest Mobile App on iOS/iPadOS/MacOS/Android via Bluetooth (10 meters) Data Logger Manual or Auto. data logger with unlimited data storage Data Content measurement values, date, time, GEO location, photo, linked asset, operator name, notes Data Output email, airdrop, or other SMS app Calibration Reminder Set up on ZenTest App Reading Auto. Hold Yes Temperature Unit ˚C or ˚F Screen Backlight 3-color backlight with auto. power off: White – measurement mode
Green – calibration mode
Red – reading alarmSelf-diagnosis
Yes
Power
AAA Batteries * 4
IP Rating
IP67
Dimensions& Weight
Tester: 40×40×178mm/133g; Case: 255×210×50mm/700g;
pH Electrode Technical Specs(LabSen 765)
Membrane Type S Housing Material
Lead-free glass
Temperature sensor
30KΩ NTC
Junction
Open
Reference Electrode
Long-Life
Electrolyte
Polymer
Range
0 to 14 pH
Temperature Range
0 to 80°C
Connector
8-pin
We warrant this instrument to be free from defects in material and workmanship and agree to repair or replace free of charge, at the option of APERA INSTRUMENTS, LLC, any malfunctioned or damaged product attributable to the responsibility of APERA INSTRUMENTS, LLC for a period of TWO YEARS for the instrument and SIX MONTHS for the probe from the delivery.
This limited warranty does NOT cover any issues due to:
- Accidental damage
- Improper use
- Normal wear and tear
- Transportation
- Storage
- Failure to follow the product instructions
- Unauthorized maintenance, modifications, combination or use with any products, materials, processes, systems or other matter
- Unauthorized repair
- External causes such as accidents, abuse, or other actions or events beyond our reasonable control.
- Description
- Specs
- Documents
- Parts
- Reviews
- Warranty
- Discover the next level of reliability, portability, and smart data management with our top-rated Smart PH60-Z tester, now paired with the Swiss LabSen 765 pH/temp. electrode. This powerful combination revolutionizes pH measurement in solid food samples like meats, frozen meats, fish, fruits, cheese, dough, etc. The electrode also works well in general water solutions. Elevate your pH measurement experience with our comprehensive test kit that leaves no detail unaddressed. This all-inclusive kit not only includes ready-to-use calibration buffer solutions (4.00/7.00/10.01) and soaking solution but also features the Apera CalPod Solution Organizer for optimizing your calibration process. All components are conveniently housed in a rugged carrying case, ensuring that you can effortlessly perform reliable pH measurements and calibrations wherever you go.
- RELIABLE + SMART + PORTABLE –– The top-rated smart pH tester is now paired with the Swiss LabSen 765 blade spear pH electrode, allowing you to directly take lab-grade pH measurement in meats and other solid foods and manage data wherever you go.
- SWISS SENSOR TECH –– The combination of open junction and polymer electrolyte eliminate the common issue of junction clogging and electrolyte immiscibility in high-protein and high-fat samples, ensuring quick and precise results.
- TITANIUM ELECTRODE BODY –– The Food-grade Titanium electrode body is highly resistant to corrosion and impact, ideal for food processing environment.
- SMART DATA MANAGEMENT –– Connect the meter to ZenTest Mobile App via Bluetooth to use the cloud-based data management functions; easily record, organize, and share all the measurement data with time stamps, geo-location, notes, and photos.
- USER-FRIENDLY WORKFLOW –– The ZenTest Mobile App will automatically guide you through step by step to perform professional calibration, and allow you to fully customize all the parameter settings to meet your specific testing needs.
Instrument Technical Specs
pH
Range
-2.00 – 16.00 pH
Resolution
0.01 pH
Accuracy
±0.01 pH ±1 digit
Temperature Compensation
0 to 100°C (Auto or Manual)
mV
Range
-1000 mV - 0 - 1000 mV
Resolution
1 mV
Accuracy
±0.2% F.S
Temp.
Range
0 to 100°C (23 to 212°F)
Resolution
0.1°C
Accuracy
±0.5°C ±1 digit
Calibration
Auto. 1–3 points
Buffer Recognition USA: pH 1.68, 4.00, 7.00,10.01, 12.45; NIST: pH 1.68, 4.01, 6.86, 9.18, 12.45 Reading Alarm Yes Smart Controlling ZenTest Mobile App on iOS/iPadOS/MacOS/Android via Bluetooth (10 meters) Data Logger Manual or Auto. data logger with unlimited data storage Data Content measurement values, date, time, GEO location, photo, linked asset, operator name, notes Data Output email, airdrop, or other SMS app Calibration Reminder Set up on ZenTest App Reading Auto. Hold Yes Temperature Unit ˚C or ˚F Screen Backlight 3-color backlight with auto. power off: White – measurement mode
Green – calibration mode
Red – reading alarmSelf-diagnosis
Yes
Power
AAA Batteries * 4
IP Rating
IP67
Dimensions& Weight
Tester: 40×40×178mm/133g; Case: 255×210×50mm/700g;
pH Electrode Technical Specs(LabSen 765)
Membrane Type S Housing Material
Lead-free glass
Temperature sensor
30KΩ NTC
Junction
Open
Reference Electrode
Long-Life
Electrolyte
Polymer
Range
0 to 14 pH
Temperature Range
0 to 80°C
Connector
8-pin
Instrument Technical Specs
pH
Range
-2.00 – 16.00 pH
Resolution
0.01 pH
Accuracy
±0.01 pH ±1 digit
Temperature Compensation
0 to 100°C (Auto or Manual)
mV
Range
-1000 mV - 0 - 1000 mV
Resolution
1 mV
Accuracy
±0.2% F.S
Temp.
Range
0 to 100°C (23 to 212°F)
Resolution
0.1°C
Accuracy
±0.5°C ±1 digit
Calibration
Auto. 1–3 points
Buffer Recognition USA: pH 1.68, 4.00, 7.00,10.01, 12.45; NIST: pH 1.68, 4.01, 6.86, 9.18, 12.45 Reading Alarm Yes Smart Controlling ZenTest Mobile App on iOS/iPadOS/MacOS/Android via Bluetooth (10 meters) Data Logger Manual or Auto. data logger with unlimited data storage Data Content measurement values, date, time, GEO location, photo, linked asset, operator name, notes Data Output email, airdrop, or other SMS app Calibration Reminder Set up on ZenTest App Reading Auto. Hold Yes Temperature Unit ˚C or ˚F Screen Backlight 3-color backlight with auto. power off: White – measurement mode
Green – calibration mode
Red – reading alarmSelf-diagnosis
Yes
Power
AAA Batteries * 4
IP Rating
IP67
Dimensions& Weight
Tester: 40×40×178mm/133g; Case: 255×210×50mm/700g;
pH Electrode Technical Specs(LabSen 765)
Membrane Type S Housing Material
Lead-free glass
Temperature sensor
30KΩ NTC
Junction
Open
Reference Electrode
Long-Life
Electrolyte
Polymer
Range
0 to 14 pH
Temperature Range
0 to 80°C
Connector
8-pin
Instrument Technical Specs
pH
Range
-2.00 – 16.00 pH
Resolution
0.01 pH
Accuracy
±0.01 pH ±1 digit
Temperature Compensation
0 to 100°C (Auto or Manual)
mV
Range
-1000 mV - 0 - 1000 mV
Resolution
1 mV
Accuracy
±0.2% F.S
Temp.
Range
0 to 100°C (23 to 212°F)
Resolution
0.1°C
Accuracy
±0.5°C ±1 digit
Calibration
Auto. 1–3 points
Buffer Recognition USA: pH 1.68, 4.00, 7.00,10.01, 12.45; NIST: pH 1.68, 4.01, 6.86, 9.18, 12.45 Reading Alarm Yes Smart Controlling ZenTest Mobile App on iOS/iPadOS/MacOS/Android via Bluetooth (10 meters) Data Logger Manual or Auto. data logger with unlimited data storage Data Content measurement values, date, time, GEO location, photo, linked asset, operator name, notes Data Output email, airdrop, or other SMS app Calibration Reminder Set up on ZenTest App Reading Auto. Hold Yes Temperature Unit ˚C or ˚F Screen Backlight 3-color backlight with auto. power off: White – measurement mode
Green – calibration mode
Red – reading alarmSelf-diagnosis
Yes
Power
AAA Batteries * 4
IP Rating
IP67
Dimensions& Weight
Tester: 40×40×178mm/133g; Case: 255×210×50mm/700g;
pH Electrode Technical Specs(LabSen 765)
Membrane Type S Housing Material
Lead-free glass
Temperature sensor
30KΩ NTC
Junction
Open
Reference Electrode
Long-Life
Electrolyte
Polymer
Range
0 to 14 pH
Temperature Range
0 to 80°C
Connector
8-pin
Compatibility
We warrant this instrument to be free from defects in material and workmanship and agree to repair or replace free of charge, at the option of APERA INSTRUMENTS, LLC, any malfunctioned or damaged product attributable to the responsibility of APERA INSTRUMENTS, LLC for a period of TWO YEARS for the instrument and SIX MONTHS for the probe from the delivery.
This limited warranty does NOT cover any issues due to:
- Accidental damage
- Improper use
- Normal wear and tear
- Transportation
- Storage
- Failure to follow the product instructions
- Unauthorized maintenance, modifications, combination or use with any products, materials, processes, systems or other matter
- Unauthorized repair
- External causes such as accidents, abuse, or other actions or events beyond our reasonable control.
