SX751 8-in-1 Portable pH/DO/ORP/Conductivity/TDS/Salinity/Resistivity/Temperature Meter Kit

$975.00
OR
SKU
AI469
  • Description
  • Specs
  • Documents
  • Parts
  • Warranty
  • Apera SX751 is designed for lab-grade measurement of up to 8 water quality parameters in the field, including pH, ORP (redox), DO (dissolved oxygen), conductivity, TDS, salinity, and resistivity. It is suitable for general water solutions’ applications such as water treatment, groundwater, surface water, hydroponics, environmental monitoring, aquaculture, aquarium, beverage making, etc.



    Basic Features

    • Intelligent functions –– auto. calibration, auto. temperature compensation, self-diagnosis, data logging, auto. power off, and more.
    • Digital filter technology –– enhance the meter’s response time and measurement accuracy
    • Automatic electrode recognition –– the meter automatically switches to the right parameter mode according to the connected electrode
    • Data logging –– 400 sets of data storage and recall
    • Built tough –– IP57 water-resistant structure, ideal for use in harsh environment

    pH Features

    • Built with lithium glass membrane and fiber ceramic junction, the 201T-S pH/temp. electrode provides the foundation for quick response and accurate pH readings.
    • 1 to 3 points of quick auto. calibration, recognizing up to 13 kinds of pH buffers.
    • The self-diagnosis function helps you understand common problems and how to fix them.
    • With the 8-pin to BNC converter (sold separately), a variety of LabSen pH electrodes can be connected to meet the testing needs of specialized applications.


    Conductivity Features

    • Built with Apera’s proprietary platinum black, the 2301T-S conductivity/temp. electrode ensures high accuracy (±1% F.S) in a wide-range (0 to 200,000 µS/cm)
    • Simple 1-point automatic calibration, recognizing up to 8 kinds of conductivity standards
    • Easy switch to TDS, salinity, and resistivity
    • 0 to 50˚C Automatic temperature compensation
    • Non-linear temperature compensation will be triggered if the sample’s conductivity is <10µS/cm, significantly increasing the reading accuracy for pure water.


    DO Features

    • Equipped with Apera's DO500 polarographic DO electrode, featuring quick response and integrated temperature and salinity sensors.
    • Replaceable DO membrane cap (3 replacement membrane caps and an inner solution refill are included in the kit).
    • Regular electrode polarization only takes 5 minutes. Measurement reaches 90% response within 30 seconds.
    • Automatic compensation for temperature and salinity; manual compensation for barometric pressure


    ORP Features

    • Equipped with 301Pt-S Platinum ORP electrode featured with stable potential and fast response
    • No need for ORP calibration
    • The platinum sensor is easy to clean and maintain

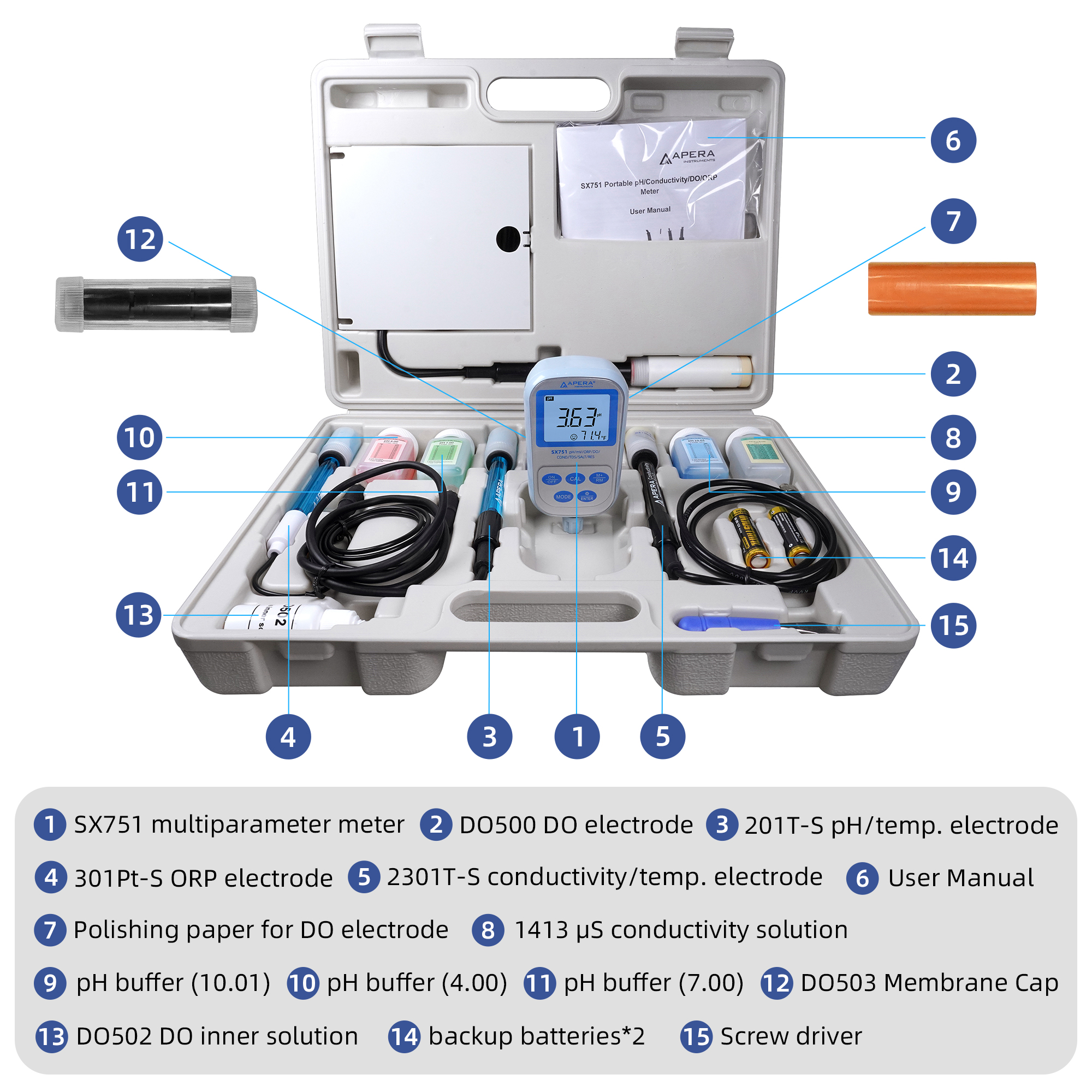

    Comes as a complete test kit in a rugged carrying case for convenient field test

    SX751-_

  • Description
  • Specs
  • Documents
  • Parts
  • Reviews
  • Warranty
  • Apera SX751 is designed for lab-grade measurement of up to 8 water quality parameters in the field, including pH, ORP (redox), DO (dissolved oxygen), conductivity, TDS, salinity, and resistivity. It is suitable for general water solutions’ applications such as water treatment, groundwater, surface water, hydroponics, environmental monitoring, aquaculture, aquarium, beverage making, etc.



    Basic Features

    • Intelligent functions –– auto. calibration, auto. temperature compensation, self-diagnosis, data logging, auto. power off, and more.
    • Digital filter technology –– enhance the meter’s response time and measurement accuracy
    • Automatic electrode recognition –– the meter automatically switches to the right parameter mode according to the connected electrode
    • Data logging –– 400 sets of data storage and recall
    • Built tough –– IP57 water-resistant structure, ideal for use in harsh environment

    pH Features

    • Built with lithium glass membrane and fiber ceramic junction, the 201T-S pH/temp. electrode provides the foundation for quick response and accurate pH readings.
    • 1 to 3 points of quick auto. calibration, recognizing up to 13 kinds of pH buffers.
    • The self-diagnosis function helps you understand common problems and how to fix them.
    • With the 8-pin to BNC converter (sold separately), a variety of LabSen pH electrodes can be connected to meet the testing needs of specialized applications.


    Conductivity Features

    • Built with Apera’s proprietary platinum black, the 2301T-S conductivity/temp. electrode ensures high accuracy (±1% F.S) in a wide-range (0 to 200,000 µS/cm)
    • Simple 1-point automatic calibration, recognizing up to 8 kinds of conductivity standards
    • Easy switch to TDS, salinity, and resistivity
    • 0 to 50˚C Automatic temperature compensation
    • Non-linear temperature compensation will be triggered if the sample’s conductivity is <10µS/cm, significantly increasing the reading accuracy for pure water.


    DO Features

    • Equipped with Apera's DO500 polarographic DO electrode, featuring quick response and integrated temperature and salinity sensors.
    • Replaceable DO membrane cap (3 replacement membrane caps and an inner solution refill are included in the kit).
    • Regular electrode polarization only takes 5 minutes. Measurement reaches 90% response within 30 seconds.
    • Automatic compensation for temperature and salinity; manual compensation for barometric pressure


    ORP Features

    • Equipped with 301Pt-S Platinum ORP electrode featured with stable potential and fast response
    • No need for ORP calibration
    • The platinum sensor is easy to clean and maintain


    Comes as a complete test kit in a rugged carrying case for convenient field test

    SX751-_

    pH

    Measurement range

    (-2.00 to 19.99) pH

    Resolution

    0.1/0.01 pH

    Accuracy

    ±0.01pH±1 digit

    Input current

    ≤2×10-12 A

    Input impedance

    ≥1×1012 Ω

    Temp. compensation range

    (0 to 100) ˚C (automatic)



    ORP

    Measurement range (mV/ORP/EH)

    -1999 mV to 1999mV

    Resolution

    1mV

    Accuracy

    ±15mV



    Conductivity

    Measurement range

    Conductivity:

    (0.00 to 19.99) μS/cm (20.0 to 199.9) μS/cm

    (200 to 1999) μS/cm (2.00 to 19.99) mS/cm

    (20.0 to 199.9) mS/cm

    TDS: (0 to 100) g/L; Salinity : (0 to 100) ppt

    Resistivity: (0 to 100) MΩ·cm

    Resolution

    0.01/0.1/1μS/cm; 0.01/0.1 mS/cm

    Accuracy

    ±1.0% F.S

    Temp. compensation range

    (0 to 50) ˚C (automatic)

    Electrode constant

    0.1 / 1 / 10 cm-1

    Reference temperature

    25˚C, 20˚C, and 18˚C



    Dissolved Oxygen

    Measurement range

    (0 to 19.99) mg/L (ppm); (0 to 200.0) %

    Resolution

    0.1/0.01 mg/L (ppm) 1/0.1%

    Accuracy

    ±0.30 mg/L (ppm)

    Response time

    ≤30 seconds (25˚C, 90% response)

    Temp. compensation range

    (0 to 45) ˚C (automatic)

    Salinity compensation range

    (0 to 45) ppt (automatic)

    Barometric pressure compensation range

    (66 to 200) kPa (manual)

    Automatic calibration

    One or two points at 100% (water-saturated air) and

    0%

    Electrode type

    Polarographic



    Other Technical Parameters

    Data storage

    400 sets

    Data content

    Serial number, measurement value, measurement unit, and temperature

    Power Supply

    Two AA alkaline batteries (1.5V x2)

    Dimensions and weight

    Meter: (65×120×31) mm/180g

    Complete Kit: (255 x 210x 50) mm/1760g

    Quality and safety certification

    CE, ISO 9001:2015



    Working Condition

    Working temperature

    5 to 35˚C

    Working humidity

    ≤85%

    IP rating

    IP57 water-resistant

    pH

    Measurement range

    (-2.00 to 19.99) pH

    Resolution

    0.1/0.01 pH

    Accuracy

    ±0.01pH±1 digit

    Input current

    ≤2×10-12 A

    Input impedance

    ≥1×1012 Ω

    Temp. compensation range

    (0 to 100) ˚C (automatic)



    ORP

    Measurement range (mV/ORP/EH)

    -1999 mV to 1999mV

    Resolution

    1mV

    Accuracy

    ±15mV



    Conductivity

    Measurement range

    Conductivity:

    (0.00 to 19.99) μS/cm (20.0 to 199.9) μS/cm

    (200 to 1999) μS/cm (2.00 to 19.99) mS/cm

    (20.0 to 199.9) mS/cm

    TDS: (0 to 100) g/L; Salinity : (0 to 100) ppt

    Resistivity: (0 to 100) MΩ·cm

    Resolution

    0.01/0.1/1μS/cm; 0.01/0.1 mS/cm

    Accuracy

    ±1.0% F.S

    Temp. compensation range

    (0 to 50) ˚C (automatic)

    Electrode constant

    0.1 / 1 / 10 cm-1

    Reference temperature

    25˚C, 20˚C, and 18˚C



    Dissolved Oxygen

    Measurement range

    (0 to 19.99) mg/L (ppm); (0 to 200.0) %

    Resolution

    0.1/0.01 mg/L (ppm) 1/0.1%

    Accuracy

    ±0.30 mg/L (ppm)

    Response time

    ≤30 seconds (25˚C, 90% response)

    Temp. compensation range

    (0 to 45) ˚C (automatic)

    Salinity compensation range

    (0 to 45) ppt (automatic)

    Barometric pressure compensation range

    (66 to 200) kPa (manual)

    Automatic calibration

    One or two points at 100% (water-saturated air) and

    0%

    Electrode type

    Polarographic



    Other Technical Parameters

    Data storage

    400 sets

    Data content

    Serial number, measurement value, measurement unit, and temperature

    Power Supply

    Two AA alkaline batteries (1.5V x2)

    Dimensions and weight

    Meter: (65×120×31) mm/180g

    Complete Kit: (255 x 210x 50) mm/1760g

    Quality and safety certification

    CE, ISO 9001:2015



    Working Condition

    Working temperature

    5 to 35˚C

    Working humidity

    ≤85%

    IP rating

    IP57 water-resistant
